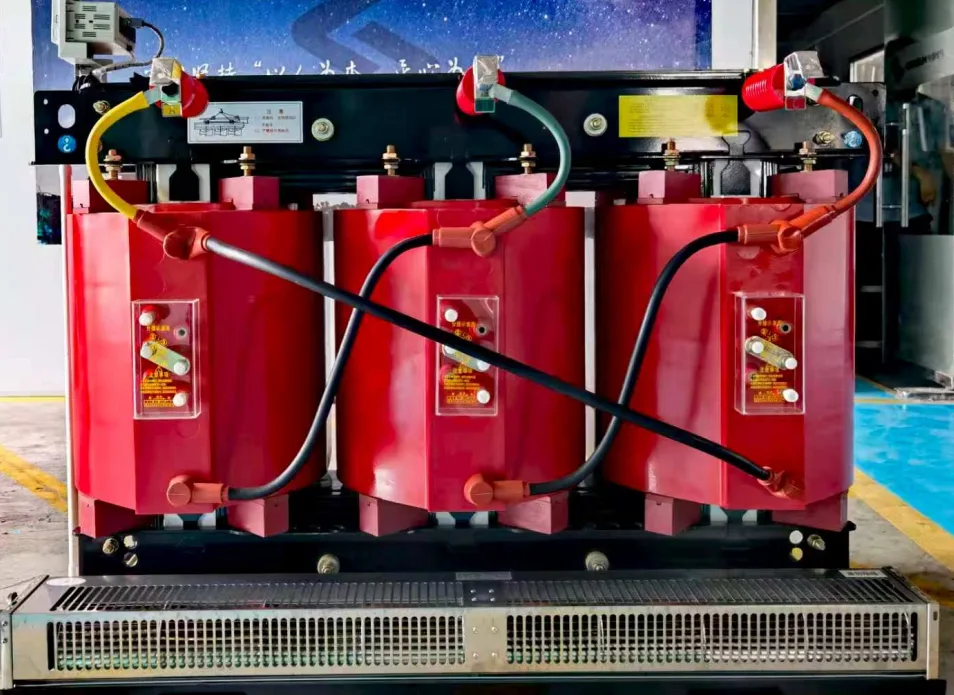

China cast resin transformer-XinYa China manufacturer

Cast Resin Transformer: Technical Overview for Indoor Power Distribution

A cast resin transformer is a type of dry-type transformer in which the high-voltage windings are encapsulated in epoxy resin under vacuum conditions. It is widely used in commercial buildings, industrial plants, hospitals, data centers, transportation facilities, renewable energy stations, and indoor substations where fire safety, environmental protection, and reliable operation are important. Unlike oil-immersed transformers, cast resin transformers do not use insulating oil, which reduces fire risk and eliminates the possibility of oil leakage. The main structure includes a laminated steel core, high-voltage windings encapsulated in epoxy resin, low-voltage windings, an enclosure, cooling fans, temperature monitoring devices, and protective accessories. The resin encapsulation provides strong mechanical protection, moisture resistance, and improved short-circuit withstand capability. It also helps maintain stable insulation performance in environments with dust, humidity, or chemical pollution. Cast resin transformers are commonly designed for indoor installation and can operate under continuous load with controlled temperature rise. These transformers are available in different insulation classes, cooling modes, and protection levels. Common cooling methods include natural air cooling and forced air cooling with fans. The rated capacity, voltage level, impedance, vector group, and enclosure class should be selected according to load characteristics, installation environment, and project requirements. They are suitable for applications where space is limited, maintenance access is restricted, or strict fire protection standards apply. Key technical parameters include rated power, primary and secondary voltage, frequency, insulation class, temperature rise, efficiency level, partial discharge level, short-circuit withstand capability, and protection class. Routine maintenance should include inspection of surface condition, electrical connections, cooling fans, temperature sensors, grounding system, and enclosure ventilation. When correctly specified and maintained, a cast resin transformer provides safe, compact, and reliable power distribution for indoor and sensitive environments.
