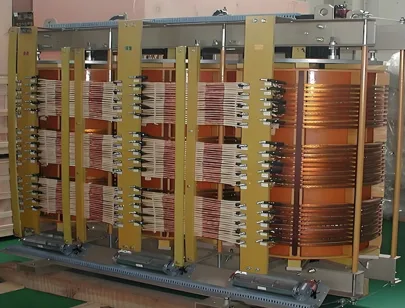

Aluminum winding transformer-XinYa China manufacturer

Engineering Overview of the Aluminum Winding Transformer

The aluminum winding transformer represents a strategic engineering solution designed to optimize the balance between initial capital expenditure and operational performance in electrical distribution networks. By utilizing high-conductivity aluminum conductors instead of copper, these transformers offer a lightweight and cost-effective alternative for medium-voltage applications, particularly in commercial buildings, residential complexes, and renewable energy installations.

To compensate for aluminum's lower conductivity compared to copper, the winding design incorporates a larger cross-sectional area. This ensures equivalent current-carrying capacity and adherence to IEC 60076 standards regarding load loss and impedance. Modern manufacturing techniques, such as continuous transposed cable (CTC) technology and advanced welding processes at the terminals, effectively mitigate connection resistance issues, ensuring long-term reliability.

A distinct technical advantage of the aluminum winding transformer is its reduced weight, which simplifies transportation and reduces structural load requirements for substation platforms. Furthermore, aluminum windings exhibit excellent thermal stability and resistance to corrosion when properly insulated. For projects where budget constraints are significant but efficiency cannot be compromised, selecting an aluminum-wound unit provides a viable, compliant, and durable infrastructure solution.
