● Industries
Commercial & real estate

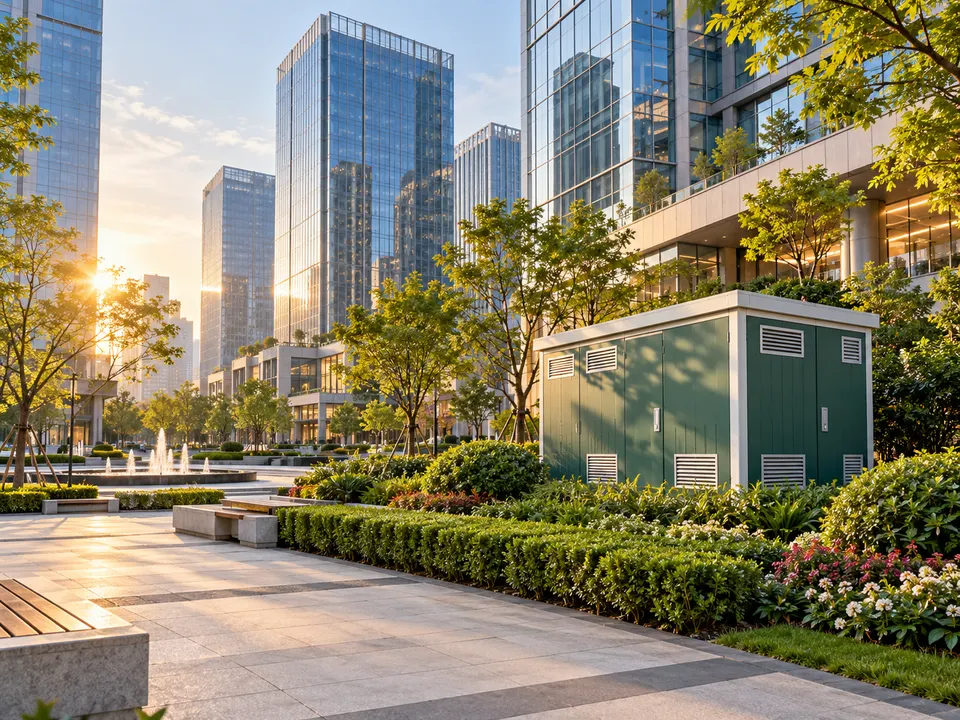

Compact substations for buildings and campuses.
European-style prefabricated substations, American pad-mounted transformers and low-noise dry types for residential communities, malls, hotels and hospitals.
- Prefabricated 100–1,600 kVA
- Low noise down to 45 dB
- Fire-safe dry type indoors
Featured transformers & substations
YB-12/0.4
Box-type substationsYB European-Style Prefabricated SubstationHV switchgear, transformer and LV board in one weatherproof enclosure.
- Rated capacity
- 100–1,600 kVA
- Rated voltage
- 12 / 0.4 kV
- Standards
- IEC 62271-202
ZGS11-H
Compact transformersZGS11 American Pad-Mounted Compact TransformerTransformer, load switch and fuses in one sealed tank — four bolts to install.
- Rated capacity
- 30–1,600 kVA
- Rated voltage
- 10 / 0.4 kV
- Standards
- IP33
SCB10
Dry-type transformersSCB10 / SCB11 / SCB13 Cast-Resin Dry-Type TransformerFire-safe, oil-free power for buildings, hospitals and factories.
- Rated capacity
- 30–2,500 kVA
- Rated voltage
- 6–11 / 0.4 kV
- Standards
- IEC 60076-11
SCBH15
Dry-type transformersSCBH15 Amorphous-Alloy Dry-Type TransformerThe efficiency of amorphous cores with the safety of cast resin.
- Rated capacity
- 30–2,500 kVA
- Rated voltage
- 10 / 0.4 kV
- Standards
- −70% P0
GGD
HV & LV switchgearGGD / GCS / MNS Low-Voltage SwitchgearMain distribution boards, MCCs and capacitor banks to IEC 61439.
- Rated capacity
- 400–4,000 A
- Rated voltage
- 0.4 kV
- Standards
- IEC 61439
YJV / YJV22 8.7/15 kVMade by Xinya
Power cablesXLPE Medium-Voltage Power Cable YJV / YJV22The cable between your switchgear and your transformer — made by Xinya.
- Rated capacity
- 3×25–3×400 mm²
- Rated voltage
- 8.7/15–26/35 kV
- Standards
- IEC 60502-2
Power cables
The transformer is only as good as the cable feeding it.
Xinya started as a power cable manufacturer. Every transformer and substation we supply can ship with the MV and LV cables specified for it — sized, terminated and tested.
- MV power cable
XLPE-insulated copper cable 6/10 to 26/35 kV to IEC 60502-2, armoured or unarmoured, from our own lines.
- Terminations & joints
Heat-shrink or cold-shrink terminations matched to bushings, elbow connectors and switchgear.
- One set of test records
Cable routine tests delivered together with the transformer test report for your inspector.
- One shipment
Transformers, substations and cable drums consolidated in one container booking.
● RFQ
Planning a transformer or substation project?
Tell us the load, voltage levels and site. You get a selection, outline drawing and quotation within one working day.
