Transformers & substation equipment
Oil-immersed and dry-type transformers, power transformers, prefabricated and compact substations, switchgear, special transformers and MV cables.
S11-M
Oil-immersed transformersS13 Oil-Immersed Distribution Transformer 10 kVSealed, low-loss, maintenance-free — the workhorse of every distribution network.
- Rated capacity
- 30–2,500 kVA
- Rated voltage
- 6–11 / 0.4 kV
- Standards
- IEC 60076
SBH15-M
Oil-immersed transformersSBH15 Amorphous-Alloy Oil-Immersed TransformerAbout 70% less no-load loss — energy savings every hour it is energised.
- Rated capacity
- 30–2,500 kVA
- Rated voltage
- 6–11 / 0.4 kV
- Standards
- −70% P0
XY-S13-33
Oil-immersed transformers33 kV Oil-Immersed Distribution TransformerBuilt for 11 kV and 33 kV networks in Africa, the Middle East and Asia.
- Rated capacity
- 25–2,500 kVA
- Rated voltage
- 11 / 33 kV
- Standards
- IEC 60076
SCB10
Dry-type transformersSCB10 / SCB11 / SCB13 Cast-Resin Dry-Type TransformerFire-safe, oil-free power for buildings, hospitals and factories.
- Rated capacity
- 30–2,500 kVA
- Rated voltage
- 6–11 / 0.4 kV
- Standards
- IEC 60076-11
SCB11-35
Dry-type transformers35 kV Low-Noise Dry-Type Power TransformerDown to 45 dB — quiet enough for hotels, hospitals and city centres.
- Rated capacity
- 50–20,000 kVA
- Rated voltage
- 20–35 kV
- Standards
- ≤45 dB
SCBH15

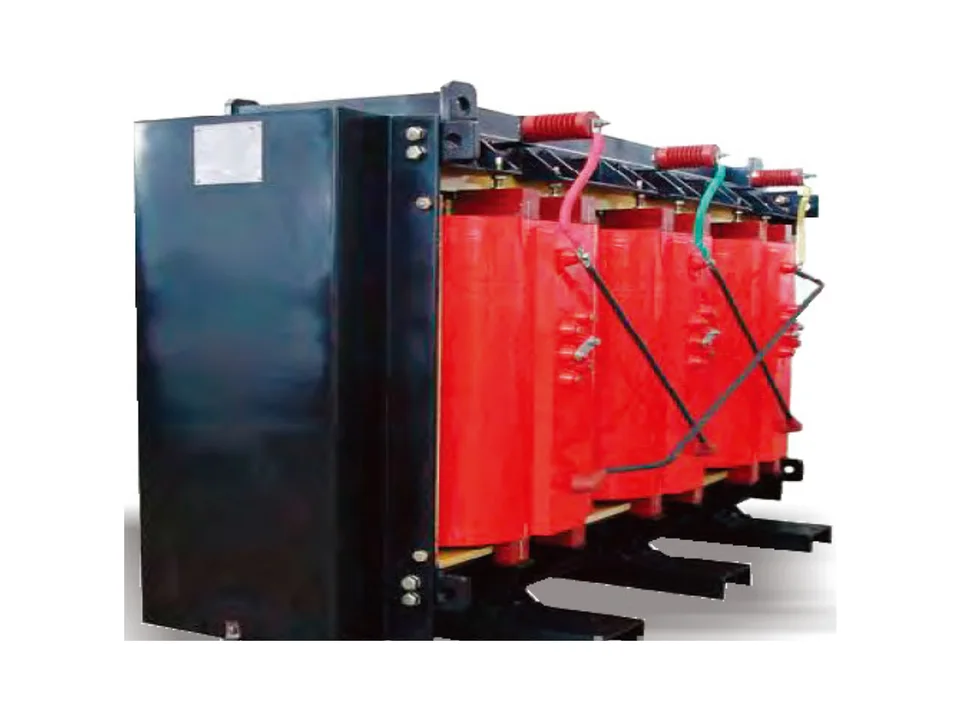

Dry-type transformersSCBH15 Amorphous-Alloy Dry-Type TransformerThe efficiency of amorphous cores with the safety of cast resin.
- Rated capacity
- 30–2,500 kVA
- Rated voltage
- 10 / 0.4 kV
- Standards
- −70% P0
SGB10

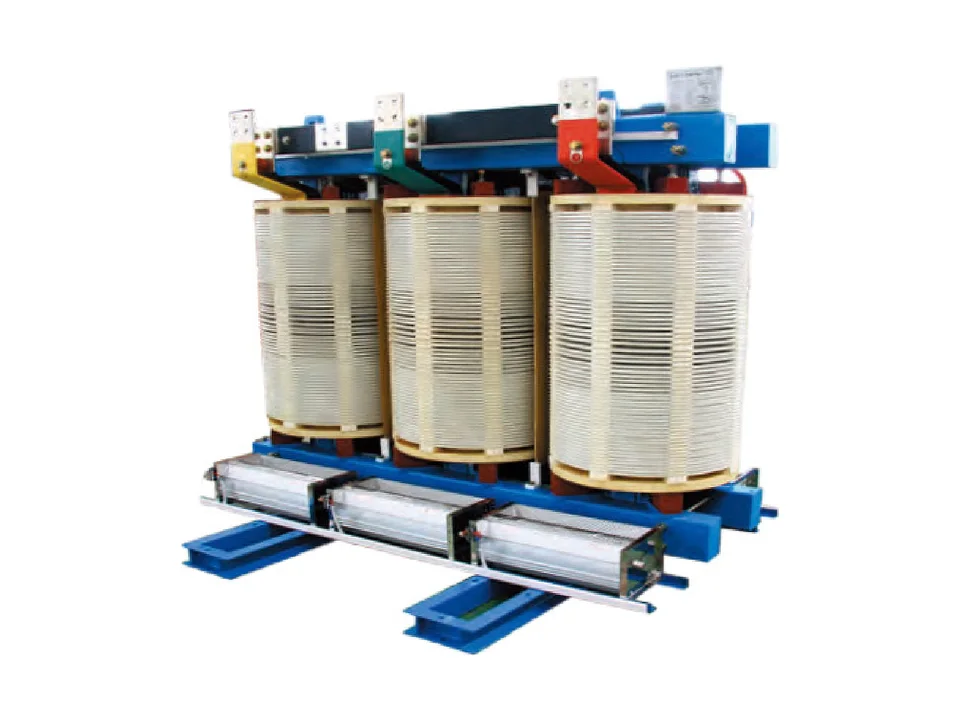

Dry-type transformersSGB H-Class Open-Ventilated Dry-Type TransformerNOMEX® insulation for humid, hot and heavy-load sites.
- Rated capacity
- 30–2,500 kVA
- Rated voltage
- 10 / 0.4 kV
- Standards
- Class H
XY-SZ11-35
Power transformers35 kV / 66 kV Power Transformer with OLTCSubstation and industrial power transformers from 3.15 to 20 MVA.
- Rated capacity
- 3.15–20 MVA
- Rated voltage
- 33–66 kV
- Standards
- IEC 60076
XY-SZ11-110
Power transformers110 / 132 / 220 kV Power TransformerHigh-voltage grid transformers up to 40 MVA, engineered per project.
- Rated capacity
- 16–40 MVA
- Rated voltage
- 110–220 kV
- Standards
- IEC 60076
XY-D11

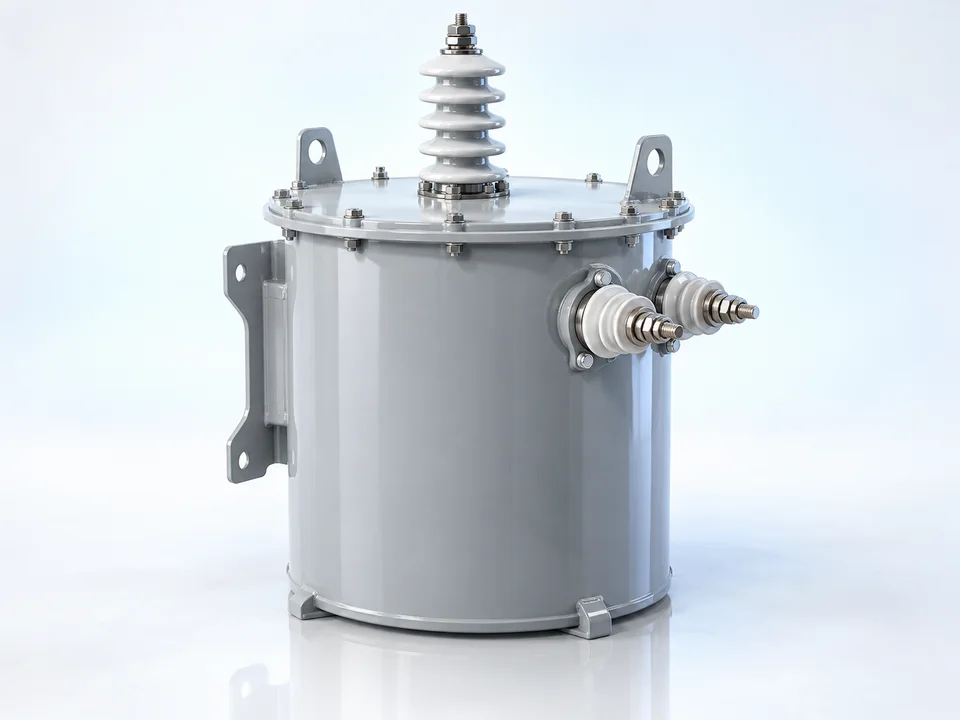

Distribution transformersSingle-Phase Pole-Mounted Transformer 10–160 kVACompact single-phase power for rural electrification and rail.
- Rated capacity
- 10–160 kVA
- Rated voltage
- 6.3–33 kV
- Standards
- IEC 60076
YB-12/0.4
Box-type substationsYB European-Style Prefabricated SubstationHV switchgear, transformer and LV board in one weatherproof enclosure.
- Rated capacity
- 100–1,600 kVA
- Rated voltage
- 12 / 0.4 kV
- Standards
- IEC 62271-202
ZGS11-H
Compact transformersZGS11 American Pad-Mounted Compact TransformerTransformer, load switch and fuses in one sealed tank — four bolts to install.
- Rated capacity
- 30–1,600 kVA
- Rated voltage
- 10 / 0.4 kV
- Standards
- IP33
XY-ZGS-PV
Compact transformersSolar PV Step-Up Box TransformerInverter-to-grid step-up for PV, wind and battery plants.
- Rated capacity
- 500–3,150 kVA
- Rated voltage
- 0.8 / 35 kV
- Standards
- IEC 60076
KYN28A-12
HV & LV switchgearKYN28A-12 Metal-Clad Withdrawable Switchgear12 kV switchgear with vacuum breakers and full interlocking.
- Rated capacity
- 630–4,000 A
- Rated voltage
- 12 kV
- Standards
- IEC 62271-200
GGD

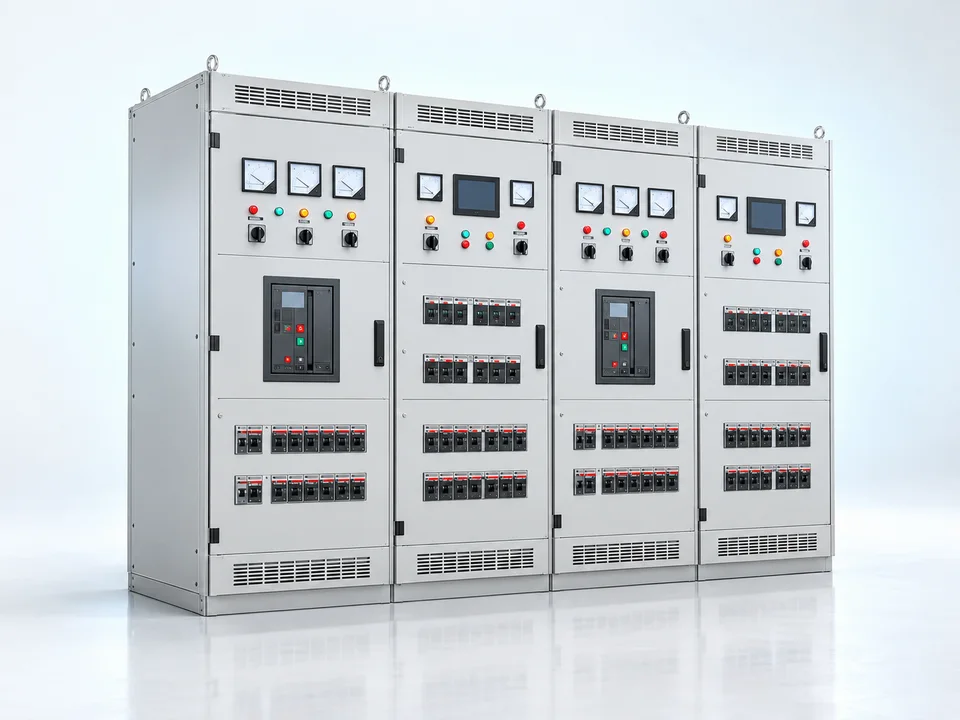

HV & LV switchgearGGD / GCS / MNS Low-Voltage SwitchgearMain distribution boards, MCCs and capacitor banks to IEC 61439.
- Rated capacity
- 400–4,000 A
- Rated voltage
- 0.4 kV
- Standards
- IEC 61439
DKSC

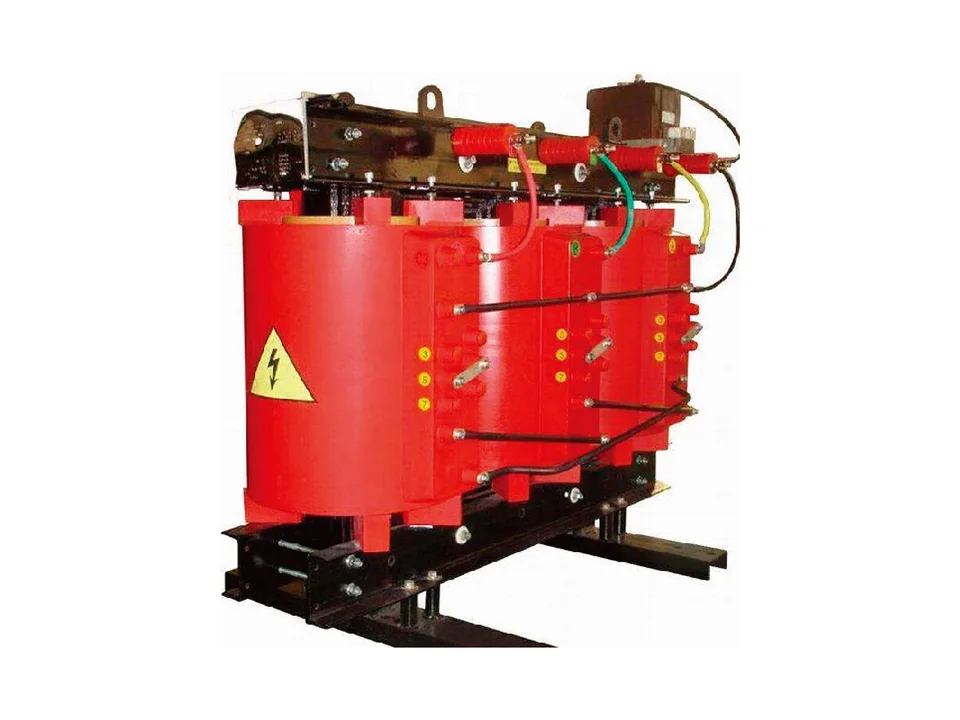

Special transformersDKSC Grounding (Earthing) TransformerAn artificial neutral for ungrounded and delta systems.
- Rated capacity
- 100–2,000 kVA
- Rated voltage
- 6–35 kV
- Standards
- IEC 60076
YJV / YJV22 8.7/15 kVMade by Xinya
Power cablesXLPE Medium-Voltage Power Cable YJV / YJV22The cable between your switchgear and your transformer — made by Xinya.
- Rated capacity
- 3×25–3×400 mm²
- Rated voltage
- 8.7/15–26/35 kV
- Standards
- IEC 60502-2
● RFQ
Planning a transformer or substation project?
Tell us the load, voltage levels and site. You get a selection, outline drawing and quotation within one working day.
