● Industries
Industry & mining
Reliable supply for plants, mines and process lines.
Cast-resin and oil-immersed transformers, unit substations and switchgear sized for motor starting, harmonics and continuous duty — from food factories to open-pit mines.
- Dry type F/H class
- Unit substations to 2,500 kVA
- MV & LV switchgear
Industries
From the grid to the last load — one supplier.
Pick a scenario and follow the power through each voltage level, with the matching equipment at every node.

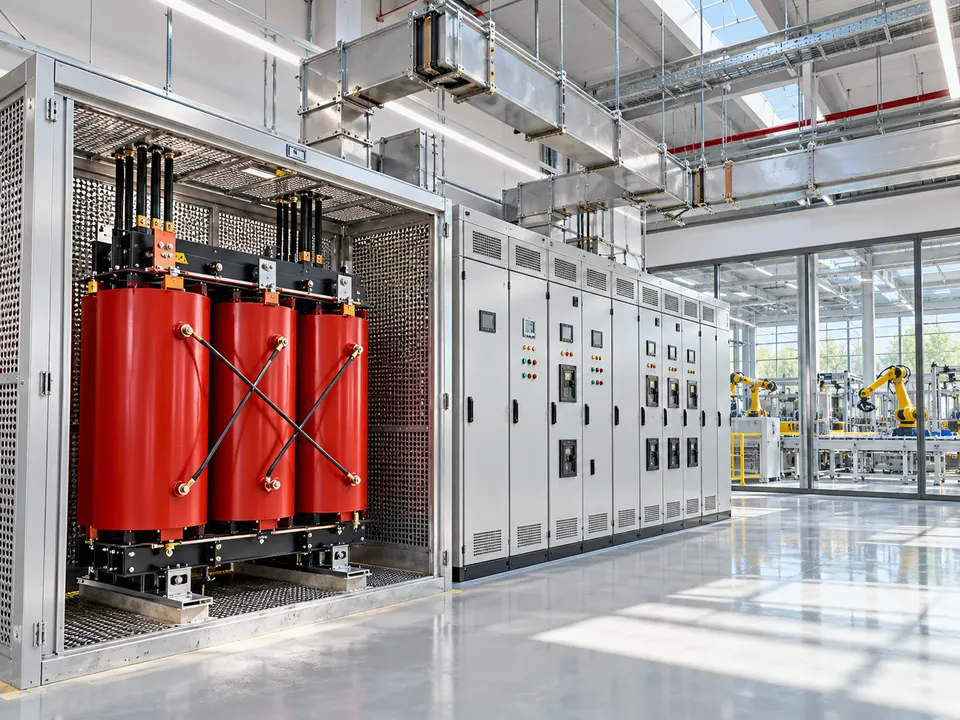

A prefabricated unit substation takes the 10–35 kV utility supply; cast-resin dry-type transformers and LV switchboards feed motors, process lines and building services safely indoors.
MV / LV cabling: XLPE Medium-Voltage Power Cable YJV / YJV22Featured transformers & substations
SCB10
Dry-type transformersSCB10 / SCB11 / SCB13 Cast-Resin Dry-Type TransformerFire-safe, oil-free power for buildings, hospitals and factories.
- Rated capacity
- 30–2,500 kVA
- Rated voltage
- 6–11 / 0.4 kV
- Standards
- IEC 60076-11
SGB10
Dry-type transformersSGB H-Class Open-Ventilated Dry-Type TransformerNOMEX® insulation for humid, hot and heavy-load sites.
- Rated capacity
- 30–2,500 kVA
- Rated voltage
- 10 / 0.4 kV
- Standards
- Class H
SCB11-35
Dry-type transformers35 kV Low-Noise Dry-Type Power TransformerDown to 45 dB — quiet enough for hotels, hospitals and city centres.
- Rated capacity
- 50–20,000 kVA
- Rated voltage
- 20–35 kV
- Standards
- ≤45 dB
S11-M
Oil-immersed transformersS13 Oil-Immersed Distribution Transformer 10 kVSealed, low-loss, maintenance-free — the workhorse of every distribution network.
- Rated capacity
- 30–2,500 kVA
- Rated voltage
- 6–11 / 0.4 kV
- Standards
- IEC 60076
YB-12/0.4
Box-type substationsYB European-Style Prefabricated SubstationHV switchgear, transformer and LV board in one weatherproof enclosure.
- Rated capacity
- 100–1,600 kVA
- Rated voltage
- 12 / 0.4 kV
- Standards
- IEC 62271-202
KYN28A-12
HV & LV switchgearKYN28A-12 Metal-Clad Withdrawable Switchgear12 kV switchgear with vacuum breakers and full interlocking.
- Rated capacity
- 630–4,000 A
- Rated voltage
- 12 kV
- Standards
- IEC 62271-200
GGD
HV & LV switchgearGGD / GCS / MNS Low-Voltage SwitchgearMain distribution boards, MCCs and capacitor banks to IEC 61439.
- Rated capacity
- 400–4,000 A
- Rated voltage
- 0.4 kV
- Standards
- IEC 61439
YJV / YJV22 8.7/15 kVMade by Xinya
Power cablesXLPE Medium-Voltage Power Cable YJV / YJV22The cable between your switchgear and your transformer — made by Xinya.
- Rated capacity
- 3×25–3×400 mm²
- Rated voltage
- 8.7/15–26/35 kV
- Standards
- IEC 60502-2
Power cables
The transformer is only as good as the cable feeding it.
Xinya started as a power cable manufacturer. Every transformer and substation we supply can ship with the MV and LV cables specified for it — sized, terminated and tested.
- MV power cable
XLPE-insulated copper cable 6/10 to 26/35 kV to IEC 60502-2, armoured or unarmoured, from our own lines.
- Terminations & joints
Heat-shrink or cold-shrink terminations matched to bushings, elbow connectors and switchgear.
- One set of test records
Cable routine tests delivered together with the transformer test report for your inspector.
- One shipment
Transformers, substations and cable drums consolidated in one container booking.
● RFQ
Planning a transformer or substation project?
Tell us the load, voltage levels and site. You get a selection, outline drawing and quotation within one working day.
