Compact Substation: Technical Overview for Integrated Power Distribution

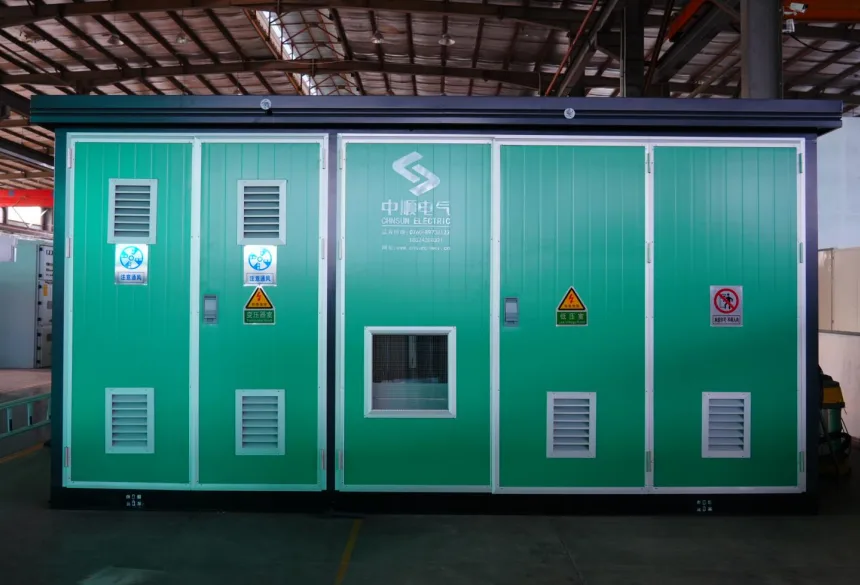

A compact substation is a prefabricated medium-voltage power distribution unit that integrates a high-voltage switchgear section, a transformer, and a low-voltage distribution section within a single weather-resistant enclosure. It is widely used in urban distribution networks, industrial plants, commercial facilities, renewable energy stations, temporary power supply projects, and locations where land area and installation time are limited. The high-voltage section typically includes ring main units, load break switches, circuit breakers, fuses, instrument transformers, and protection devices. The transformer section may be equipped with an oil-immersed or dry-type transformer, depending on installation environment, fire safety requirements, and project specifications. The low-voltage section provides incoming, metering, compensation, and outgoing circuits for end-user loads. Internal compartments are separated to support safe operation, fault isolation, ventilation, and maintenance access. Compact substations are available in outdoor and indoor configurations, and can be designed with metal, composite, or concrete enclosures. Because the equipment is factory assembled, wired, and tested, on-site civil work, cable connection, and commissioning time can be reduced compared with conventional site-built substations. Common technical parameters include rated voltage, rated current, transformer capacity, frequency, short-circuit withstand level, protection class, insulation level, cooling method, and ambient operating conditions. Proper selection should be based on load demand, supply voltage, fault level, expansion requirements, environmental conditions, and local utility regulations. Routine maintenance should include inspection of electrical connections, transformer temperature, ventilation systems, protection relays, grounding integrity, enclosure condition, and low-voltage distribution circuits. When correctly specified and maintained, a compact substation provides a space-efficient and reliable solution for medium-to-low voltage power distribution.
