Engineering Principles of a Step‑Up Transformer

A step‑up transformer is a critical electrical device designed to increase the voltage level from the primary winding to the secondary winding while proportionally decreasing the current. This voltage transformation is achieved through a specific turns ratio, where the number of turns in the secondary coil exceeds that of the primary coil. The fundamental purpose of a step‑up transformer is to facilitate efficient long-distance power transmission. By raising the voltage to high levels (e.g., 110kV, 220kV, or 400kV), the current flowing through transmission lines is significantly reduced. Since power loss in a conductor is proportional to the square of the current ($P_{loss} = I^2R$), minimizing current is essential for reducing resistive losses and improving the overall efficiency of the grid.

These transformers are most commonly found at power generation stations. Whether in thermal, hydroelectric, or nuclear plants, the electricity generated typically leaves the alternator at medium voltage (11kV to 25kV). The step‑up transformer immediately boosts this potential to transmission levels suitable for the switchyard and the national grid. In the context of renewable energy, such as large-scale solar farms or wind parks, these units are equally vital for interfacing with the main distribution network.

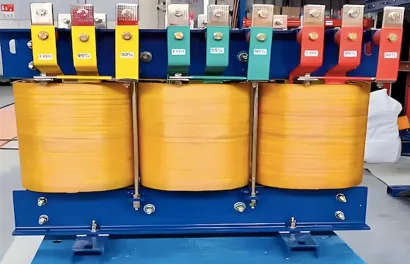

Technically, step-up units are often designed as generator transformers (GSU). They must withstand high short-circuit stresses and are frequently equipped with Off-Circuit Tap Changers (OCTC) to adjust the turns ratio for system voltage variations. They can be constructed as oil-immersed units for outdoor substations or dry-type for specific indoor generation applications, prioritizing high dielectric strength and thermal stability.
