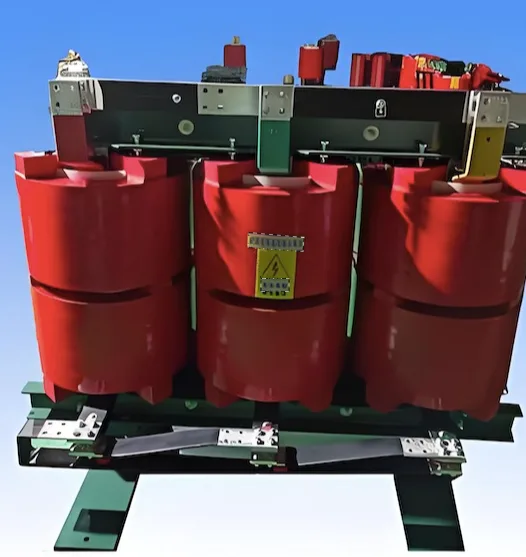

Rectifier transformer-XinYa Chian manufacturer
China rectifier transformer Supplier,Factory 27 years in GuangDong
By Xinya Power editorial team
Rectifier Transformer: Technical Overview for Industrial Power Conversion
A rectifier transformer is a specialized power transformer designed to supply controlled alternating current to rectifier systems for conversion into direct current. Unlike standard distribution transformers, rectifier transformers are engineered to withstand non-sinusoidal load currents, harmonic components, and unbalanced operating conditions commonly found in electrolysis, DC motor drives, traction power supply, and industrial DC power systems.
The core function of a rectifier transformer is to provide stable voltage transformation while maintaining reliable performance under rectifier loading. Typical configurations include multi-pulse arrangements such as 6-pulse, 12-pulse, 18-pulse, and 24-pulse systems. Multi-pulse designs help reduce harmonic distortion on the supply side and improve DC output quality. Secondary windings may use star, delta, or extended-delta connections depending on phase-shifting requirements.
Key technical considerations include impedance control, short-circuit strength, winding temperature rise, insulation class, and harmonic loss evaluation. Rectifier transformers are often designed with higher impedance to limit fault currents and reduce harmonic impact on upstream networks. Cooling methods may include ONAN, ONAF, or forced-air systems, depending on continuous load duty and installation environment.
Proper selection requires matching transformer rating, pulse number, voltage regulation, and harmonic performance with the rectifier load profile. Regular inspection of winding condition, tap changer operation, cooling system performance, and harmonic monitoring supports long-term operational reliability.
