Technical Specifications of a Compact Substation

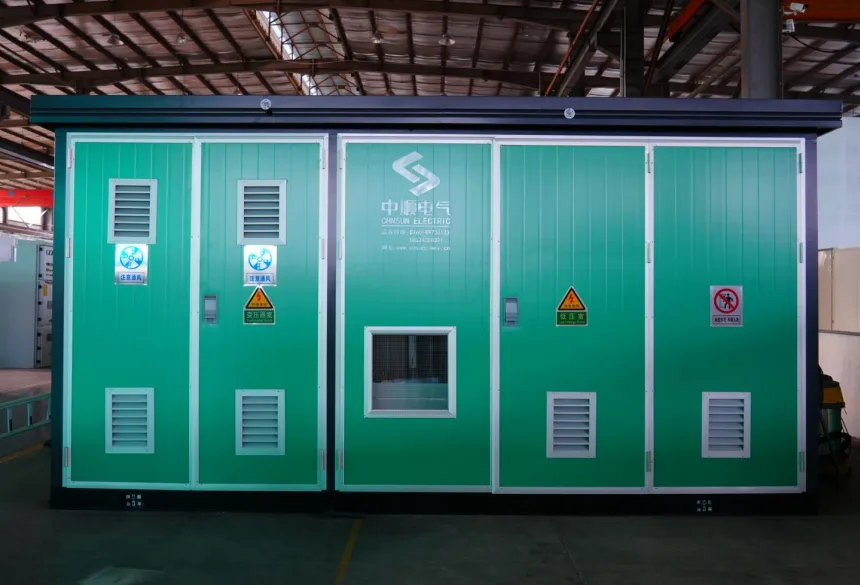

A compact substation, often referred to as a "Package Substation" or "Skid-Mounted Substation," represents a unified solution for medium-voltage (MV) to low-voltage (LV) power distribution. Unlike traditional substations that require extensive civil engineering and on-site assembly, this system integrates a high-voltage switchgear, a distribution transformer, and a low-voltage distribution panel into a single, pre-fabricated enclosure. This modular design allows the unit to be mounted on a concrete foundation or steel skid, significantly reducing installation time and footprint.
The core function of a compact substation is to step down primary voltages—typically ranging from 11kV to 36kV—to standard utilization voltages like 400V/230V. The high-voltage compartment usually houses SF6 or vacuum load-break switches, providing safe isolation and circuit protection. The transformer section is generally separated by fire-resistant barriers and can be configured as oil-immersed or dry-type depending on the installation environment (indoor vs. outdoor).
These units are engineered for versatility, serving critical roles in high-rise residential buildings, industrial plants, wind farms, and temporary construction sites. The enclosure is designed with specific IP ratings (e.g., IP54) to protect against dust, moisture, and vandalism. By integrating all power distribution components into one weatherproof housing, the compact substation minimizes transmission losses and simplifies maintenance operations, offering a reliable and space-saving infrastructure solution for modern power grids.
